Full Bore Electromagnetic Flow Meter

Full Bore Electromagnetic Flow Meter

Full Bore Electromagnetic Flow Meter

Accurate Flow Measurement for Conductive Liquids with Minimal Pressure Loss

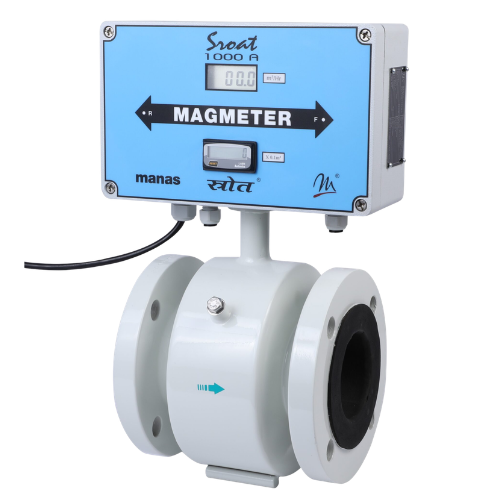

The Full Bore Electromagnetic Flow Meter is designed for accurate and reliable measurement of conductive liquids across a wide range of industrial applications. The flow meter works on Faraday’s law of electromagnetic induction and provides true volumetric flow measurement.

The measurement is largely independent of the liquid’s density, viscosity, pressure and temperature. The meter can also handle liquids containing solid impurities when the required minimum conductivity is available.

The standard model can measure liquids with conductivity above 5 µS/cm. A special version is available for applications where liquid conductivity can be as low as 2 µS/cm.

CBT Flow Solutions Pvt. Ltd. supplies flow measurement solutions and supports customers with product selection, technical assistance and industrial flow measurement requirements across India.
Product Enquiry

Product Details

Brand manas microsystems
Accuracy ±0.5 % +-(1mm/sec) of Actual Flow Rate between 100 % to 10 % of calibrated range
Line Size DN 10 to DN 350
Liner Material HR, PTFE, PFA, Neoprene
Electrode MOC SS316, Hastalloy C, TAN, TI
Flange Standard ANSI / DIN / BS 10 E/BS 10 F/ IS
Flange / Coil Housing MOC MS / CS / SS 316 / SS 304
Operating Pressure Up to DN 80 – PN 40, From DN 100 to DN 200 – PN 16, From DN 250 to DN 350 – PN 10
Operating Temperature HR: 0 – 90 ºC / PTFE: 0 – 150 ºC / PFA: 0 – 200 ºC / Neoprene: 0 – 90 ºC
Transmitter Mounting Remote / Integral
Types of Transmitters SR1000A / SR1000AP
Communication RS 485(default) / RS 232(optional) available in SR1000AP
Data Logging 5850 number of readings can be logged in SR1000AP

Features

  • The use of pulsed DC magnetization & auto-zero technique offers excellent long-term zero stability.
  • Measurement is independent of the velocity profile across the diameter of the pipeline.
  • Measurement results are independent of density, viscosity, pressure, temperature, solid – impurities & conductivity variations [above 5 µs / cm].
  • No additional pressure drop across the meter relieves the process designer while sizing his pumping requirements. Simple to install as no special precautions of straight pipe lengths are required.
  • Compatible with virtually all corrosive / non-corrosive liquids.
  • The Protection class offered IP 68 for the flow sensor, IP 67 for a transmitter.
  • Reasonably higher ratio of Return on Investment to Investment.
