Features
- Size available DN50 – DN 1500
- No moving parts and fast response to flow transits
- Highly accurate and reliable
- Isolated 4-20 mA output proportional to flow rate
- No need to cut the pipe or stop water, easy installation for clamp-on type
Ultrasonic BTU Meter
Ultrasonic BTU Meter

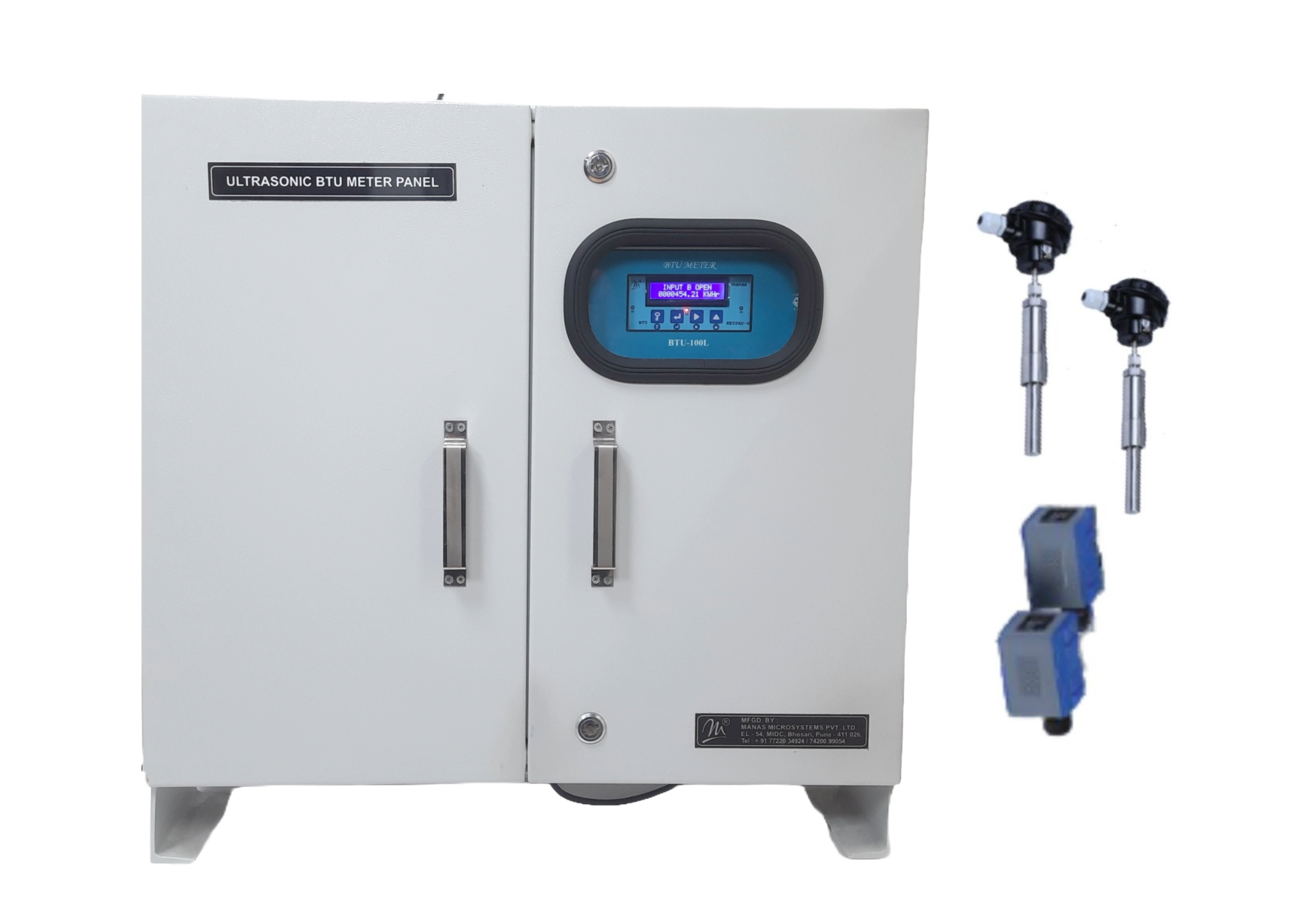

An Ultrasonic BTU Meter for HVAC systems
A BTU meter measures the thermal energy content of liquid flow in British Thermal Units (BTU) or in kilocalories (kcal), and sometimes even in Kw.
CBT Flow Solutions supply ultrasonic BTU meters that can provide a solution for calculating the BTU or measuring the BTU consumption with their BTU meters with communication support like BACnet and MODBUS with LAN Port.
An ultrasonic BTU meter comprises a combination of an ultrasonic flow meter with temperature sensors that measure energy consumption in any liquid heating or cooling system.
The ultrasonic flow meter can be either a clamp-on type or an insertion type.
The ultrasonic BTU meter has a long life, is trustworthy, and provides good accuracy.
Product Details
| Application | Industrial |
|---|---|
| Brand | manas microsystems |
| Model | UBTUc & UBTUi |
| Display Type | 16 x 2 Characters LCD Display with Backlight |
| Transducer Type | Clamp-on type & Insertion type |
| Output | 4-20 mA dc in max. 600-ohm load, Isolated, Proportional to Power. |
| Power Supply | 85V to 265V AC, 50Hz, Universal. |
| Comm port | RS485,RS232(Optional) with MODBUS RTU |
